Gradio

官网：https://www.gradio.app/open in new window
为AI模型快速搭建交互式界面。根据AI模型需求，生成输入和输出组件，简化用户界面的构建过程。

起步

基础

安装

pip install gradio

官网示例

import gradio as gr


def greet(name, intensity):
    return "Hello, " + name + "!" * int(intensity)


demo = gr.Interface(
    fn=greet,
    inputs=['text', 'slider'],
    outputs=['text'],
)

demo.launch()

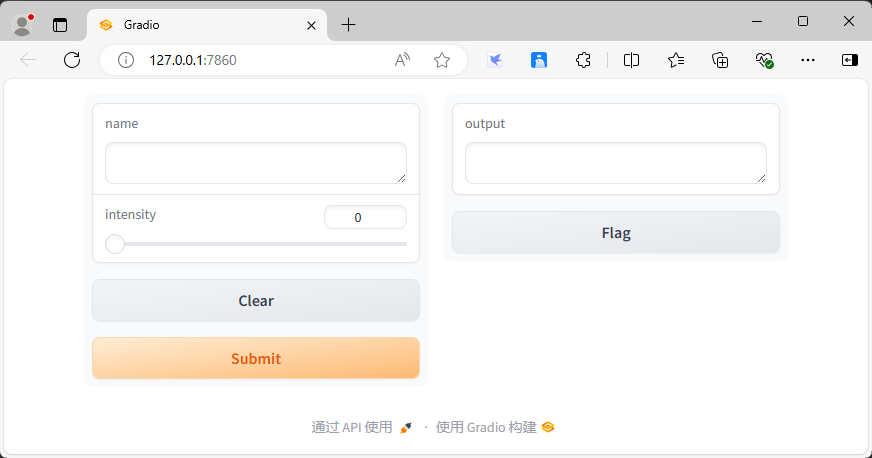

默认访问地址：http://127.0.0.1:7860
按钮
- Clear：清空输入数据
- Submit：发送请求
- Flag：保存当前结果，服务端会创建一个csv，Flag会保存数据

部署

局域网

在launch()方法中，增加参数设置
- server_name: 服务器名称默认是"127.0.0.1"，只能本机访问。改成"0.0.0.0"，即可在局域网内使用IP访问
- server_port: 服务端口默认7860，当部署多个时，可能需要单独设置避免冲突

# 其他主机通过局域网访问
demo.launch(server_name='0.0.0.0',server_port=7860)

发布公网

发布公网借助gradio的云服务，将launch()方法的share设置为True
第一次使用大概率不符合条件，控制台会打印配置方式
- 下载文件
- 重命名文件(完全一致，不要后缀名)
- 移动到对应目录(python环境的gradio目录)
配置完成重启程序，即可返回一个公网链接，有效期为72小时

# share设置为True
demo.launch(share=True)

Windows打印内容如下

Running on local URL:  http://127.0.0.1:7860

Could not create share link. Missing file: C:\Users\xxc\.conda\envs\py-demo-3.11\Lib\site-packages\gradio\frpc_windows_amd64_v0.2.

Please check your internet connection. This can happen if your antivirus software blocks the download of this file. You can install manually by following these steps:

1. Download this file: https://cdn-media.huggingface.co/frpc-gradio-0.2/frpc_windows_amd64.exe
2. Rename the downloaded file to: frpc_windows_amd64_v0.2
3. Move the file to this location: C:\Users\xxc\.conda\envs\py-demo-3.11\Lib\site-packages\gradio

Linux打印内容如下

Running on local URL:  http://127.0.0.1:7860

Could not create share link. Missing file: /home/lds/miniconda3/envs/py-demo-3.11/lib/python3.11/site-packages/gradio/frpc_linux_amd64_v0.2.

Please check your internet connection. This can happen if your antivirus software blocks the download of this file. You can install manually by following these steps:

1. Download this file: https://cdn-media.huggingface.co/frpc-gradio-0.2/frpc_linux_amd64
2. Rename the downloaded file to: frpc_linux_amd64_v0.2
3. Move the file to this location: /home/lds/miniconda3/envs/py-demo-3.11/lib/python3.11/site-packages/gradio

按打印内容配置后重启，即成功发布公网，并且打印内容如下

Running on local URL:  http://127.0.0.1:7860
Running on public URL: https://xxxxxxxxxxxxxxxx.gradio.live

This share link expires in 72 hours. For free permanent hosting and GPU upgrades, run `gradio deploy` from Terminal to deploy to Spaces (https://huggingface.co/spaces)

api调用

launch()方法有'show_api：bool'参数，默认为True
- 即'demo.launch(show_api=True)'
- 网页左下方可打开api请求方法

# 安装gradio时已安装，下面语句用于单独安装
pip install gradio_client

from gradio_client import Client

client = Client("http://127.0.0.1:7860/")
result = client.predict(
		name="Hello!!",
		intensity=0,
		api_name="/predict"
)

# 文本直接打印
# 图片则自动保存到缓存，打印的是下载的图片路径
print(result)

界面

Inferface

交互界面
官网说明：https://www.gradio.app/docs/gradio/interfaceopen in new window

参数	说明	类型	默认值	示例
fn	执行函数	Callable	必填
inputs	输入	str \| Component \| list[str \| Component] \| None	必填	"text" \| gr.Slider(0, 100) \| ["text", gr.Slider(0, 100)]
outputs	输出	str \| Component \| list[str \| Component] \| None	必填	"image" \| gr.Image() \| ["text", gr.Image()]
examples	输入示例(和输入元素一一对应)	list[Any] \| list[list[Any]] \| str \| None	None	[['张三', 1], ['李四', 2]]
title	标题(页面上方居中)	str \| None	None
description	描述(标题下方，左对齐)	str \| None	None
api_name	api接口路径	str \| Literal[False] \| None	"predict"
...

import gradio as gr


def greet(name, intensity):
    return "Hello, " + name + "!" * intensity


demo = gr.Interface(
    fn=greet,
    inputs=["text", gr.Slider(label="重复次数", value=2, minimum=1, maximum=10, step=1)],
    outputs=[gr.Textbox(label="greeting", lines=3)],
    examples=[["张三", 3], ["李四", 6]],
    title='Gradio的简单示例',
    description='输入名字和重复次数，得到欢迎语'
)

if __name__ == "__main__":
    demo.launch()

launch

启动交互界面

参数	说明	类型	默认值	说明
show_api	界面是否显示api说明	bool	True
server_name	服务地址	str \| None	None，即'127.0.0.1'	'0.0.0.0'，发布到局域网使用
server_port	端口号	int \| None	None，即7860
auth	登录权限	Callable \| tuple[str, str] \| list[tuple[str, str]] \| None	None，无需登录	('admin','123456')
share	公共分享链接	bool \| None	None	连接到gradio.live 分享地址如：https://a23dsf231adb.gradio.live
...

import gradio as gr
demo = gr.Interface(...)

if __name__ == "__main__":
    demo.launch(
        server_name='0.0.0.0',
        server_port=1234,
        auth=('admin', '123456')
    )

ChatInterface

聊天类型交互界面
官网说明：https://www.gradio.app/docs/gradio/chatinterfaceopen in new window
界面按钮
- Retry: 重新发送最后一条信息
- Undo: 删除最后一条对话
- Clear: 清空所有对话

参数	说明	类型	默认值	说明
fn	执行函数	Callable	必填
multimodal	多模态	bool	False	False则只能输入文字；True则可以上传音视频等文件
examples	示例	list[str] \| list[dict[str, str \| list]] \| list[list] \| None	None
title	标题	str \| None	None
...

import gradio as gr


# message为当前接收的消息
def echo(message, history):
    print(history)  # history包含之前的所有对话，如：[['原神', '原神,启动!'], ['LOL', 'LOL,启动!']]
    return f'{message},启动!'


demo = gr.ChatInterface(fn=echo,
                        multimodal=False,
                        examples=['原神', 'LOL', '黑神话'],
                        title="聊天机器人")
demo.launch()

TabbedInterface

Tab页界面，多个界面放在tab页当中
官方说明：https://www.gradio.app/docs/gradio/tabbedinterfaceopen in new window

参数	说明	类型	默认值	说明
interface_list	界面列表	list[Blocks]	必填
tab_names	tab名称列表	list[str] \| None	None	['计算器', '文生图']
...

import gradio as gr


def hello(name):
    return f'Hello {name}'


def bye(x: int, y: int):
    return f'{x} + {y} = {x + y}'


hello_interface = gr.Interface(fn=hello, inputs="text", outputs="text", examples=[["张三"], ["李四"]])
bye_interface = gr.Interface(fn=bye, inputs=["number", "number"], outputs="text", examples=[[1, 1], [3, 4]])

demo = gr.TabbedInterface(interface_list=[hello_interface, bye_interface],
                          tab_names=['欢迎', '计算器'])

if __name__ == "__main__":
    demo.launch()

Blocks

像搭积木一样搭建界面
官方文档：https://www.gradio.app/docs/gradio/blocksopen in new window

import gradio as gr


def plus(x: int, y: int):
    return f"{x} + {y} = {x + y}"


with gr.Blocks() as demo:
    gr.Markdown("# 演示Block")
    gr.Markdown("像搭积木一样，一行一行堆叠")

    # 添加行，里面的元素横向添加
    with gr.Row():
        inp_x = gr.Number(value=1)
        inp_y = gr.Slider()
        out = gr.Textbox()

    # 继续下一行,添加按钮
    btn = gr.Button("计算")
    btn.click(fn=plus, inputs=[inp_x, inp_y], outputs=out)

demo.launch()

render

动态渲染
官方文档：https://www.gradio.app/docs/gradio/renderopen in new window

import gradio as gr

with gr.Blocks() as demo:
    input_num = gr.Number()

    # 根据输入值动态渲染
    @gr.render(inputs=input_num)
    def show_split(num):
        if num <= 0:
            gr.Markdown("## 输入大于0的数字")
        else:
            for i in range(num):
                with gr.Row():
                    btn = gr.Button("点击")
                    text = gr.Textbox()
                    btn.click(lambda: 666, inputs=None, outputs=text)

demo.launch()

Accordion

折叠
文档：https://www.gradio.app/docs/gradio/accordionopen in new window

import gradio as gr

with gr.Blocks() as demo:
    # 折叠组件
    with gr.Accordion("查看详情"):
        gr.Markdown("- 详情1")
        gr.Markdown("- 详情2")

demo.launch()

Row/Column

import gradio as gr

with gr.Blocks() as demo:
    with gr.Row():
        with gr.Column(scale=1):
            text1 = gr.Textbox()
            text2 = gr.Textbox()
        with gr.Column(scale=4):
            btn1 = gr.Button("Button 1")
            btn2 = gr.Button("Button 2")

demo.launch()

Group

分组
文档：https://www.gradio.app/docs/gradio/groupopen in new window

import gradio as gr

with gr.Blocks() as demo:
    with gr.Group():
        gr.Textbox(label="First")
        gr.Textbox(label="Last")

demo.launch()

Tab

Tab页
文档：https://www.gradio.app/docs/gradio/tabopen in new window

import gradio as gr

with gr.Blocks() as demo:
    with gr.Tab("计算器"):
        gr.Number(label="x")
        gr.Number(label="y")
        gr.Button("计算")
    with gr.Tab("图生视频"):
        gr.Image()
        gr.Button("运行")

demo.launch()

组件

内置组件非常丰富，目前有40+组件，介绍几个常用的
常见属性

参数	类型	默认	说明
label	str \| None	None	标签，相当于表单说明
show_label	bool \| None	None	是否显示标签
visible	bool	True	如果False,组件会隐藏

常用组件

组件	简称	常用属性	说明
Textbox	"textbox"	lines,placeholder	文本框
TextArea	"textarea"	lines,placeholder	多行文本框
Number	"number"	minimum,maximum,step	数字文本框
Slider	"slider"	minimum,maximum,step	滑块
Radio	"radio"	choices	单选框
CheckboxGroup	"checkboxgroup"	choices	多选框
Audio	"audio"	format	音频，需要安装FFmpeg
Image	"image"	format,height,width,show_download_button	图片
Video	"video"	format,height,width	视频，需要安装FFmpeg

import gradio as gr
import time


def foo(textbox: str, textarea: str, number: int, slider: int, radio: str, checkboxes: list, ):
    return textbox, textarea, number, slider, radio, checkboxes


def multimedia_foo(audio, image, video):
    return audio, image, video


def chat_foo(message, history):
    return f'{message},启动！'


def image_foo(text):
    time.sleep(1)
    return "example/image-1.webp"  # 伪代码，将提前准备的资源放在该路径


def video_foo(text):
    time.sleep(1)
    return "example/video-1.mp4"  # 伪代码，将提前准备的资源放在该路径


def audio_foo(text):
    time.sleep(1)
    return "example/audio-1.mp3"  # 伪代码，将提前准备的资源放在该路径


components_interface = gr.Interface(
    fn=foo,
    inputs=[gr.Textbox(label="文本框"), gr.Number(label="数字文本框"), gr.Slider(label="滑块"),
            gr.Radio(label="单选框", choices=["单选1", "单选2", "单选3"]),
            gr.CheckboxGroup(label="复选框", choices=["复选1", "复选2", "复选3"]), gr.TextArea(label="多行文本框")],
    outputs=[gr.Textbox(), gr.Number(), gr.Slider(), gr.Textbox(), gr.Textbox(), gr.TextArea()],
    examples=[["言午日尧耳总", 100, 6, "单选1", ["复选1", "复选2"], "Gradio演示"],
              ["耳总", 10086, 66, "单选2", [], "我的博客:http://blog.xuxiiaocong.cn"]])

multimedia_interface = gr.Interface(
    fn=multimedia_foo,
    inputs=[gr.Audio(label="音频"), gr.Image(label="图片"), gr.Video(label="视频")],
    outputs=[gr.Audio(), gr.Image(), gr.Video()],
    examples=[["example/audio-1.mp3", "example/image-1.webp", "example/video-1.mp4"],
              ["example/audio-2.mp3", "example/image-2.webp", "example/video-2.mp4"],
              ["example/audio-3.mp3", "example/image-3.webp", "example/video-3.mp4"]]
)

chat_interface = gr.ChatInterface(fn=chat_foo, examples=['原神', 'LOL', '黑神话'])
text_2_image_interface = gr.Interface(fn=image_foo, inputs="text", outputs="image", examples=["小女孩抱着一只猫"])
text_2_video_interface = gr.Interface(fn=video_foo, inputs="text", outputs="video", examples=["一个帅哥坐在椅子上"])
text_2_audio_interface = gr.Interface(fn=audio_foo, inputs="text", outputs="audio", examples=["创作一首歌"])

demo = gr.TabbedInterface(
    interface_list=[components_interface, multimedia_interface, chat_interface, text_2_image_interface,
                    text_2_video_interface, text_2_audio_interface],
    tab_names=["组件演示", "多媒体", "对话型", "文生图", "文生视频", "文生音频"])

demo.launch()

其他

安装FFmpeg(Windows)

处理音视频时，需要安装FFmpeg
FFmpeg官网：https://ffmpeg.org/open in new window
官网首页点击"Download" > "More downloading options" > 选择Windows图标 > "Windows builds from gyan.dev"
此时跳转到gyan.devopen in new window > "release builds" > "ffmpeg-full.7z" 点击下载
下载后解压，将解压后的文件夹添加到环境变量中，重启命令行/IDE

ffmpeg -version

Gradio其他内容

Helpers: 交互事件，如点击事件，选择事件
Modals: 弹窗
Routes: 挂载到FastApi应用
Other: 标记(Flagging)、主题(Themes)等
